Heavy-duty electric pallet trolleys

Description

Heavy-duty electric pallet trucks with high load capacity

LOAD CAPACITY: 5 – 100 TONS

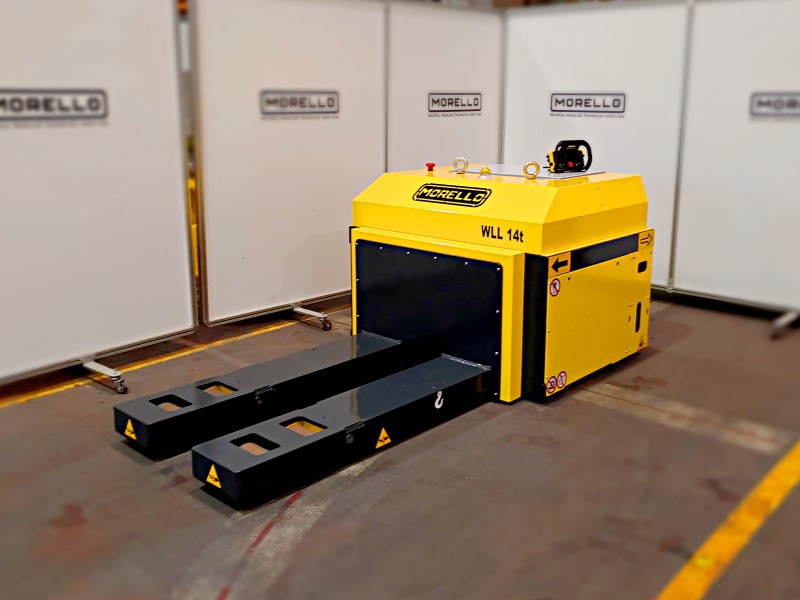

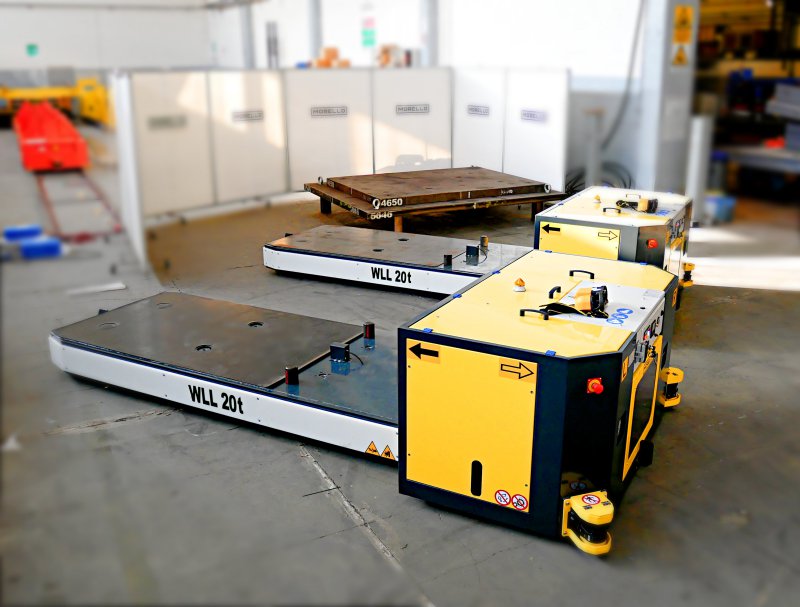

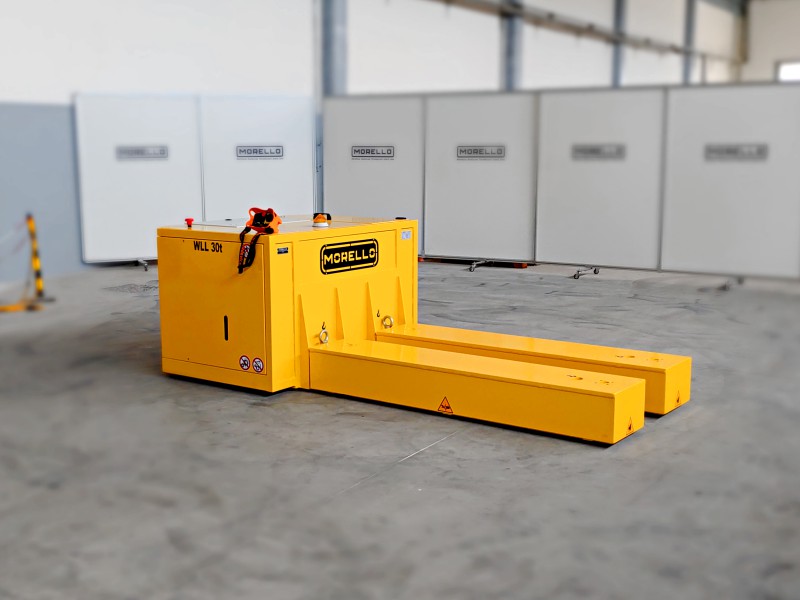

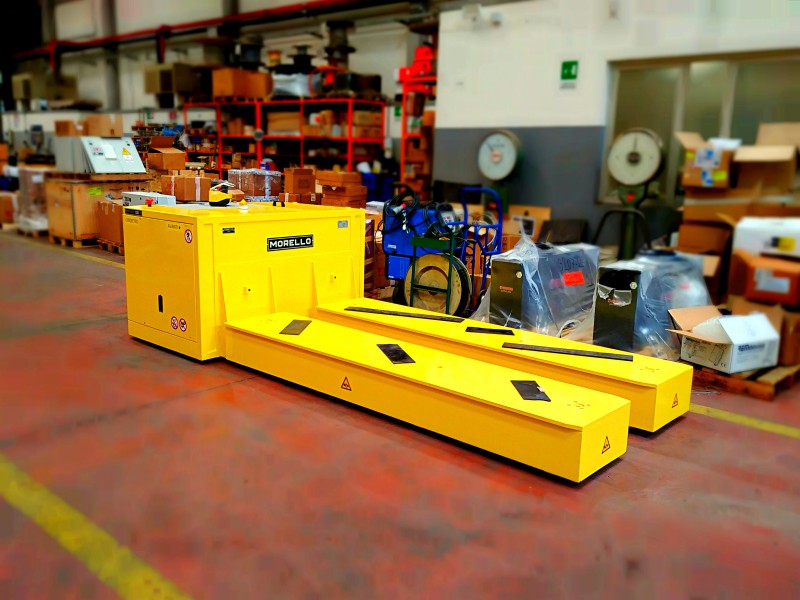

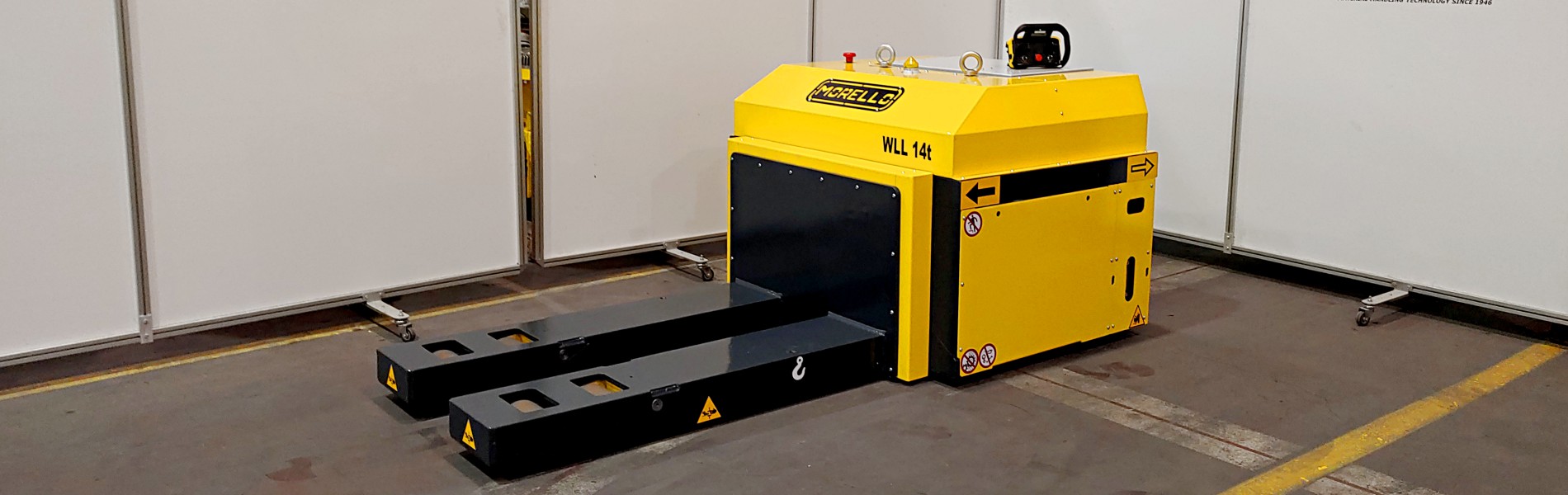

Morello specializes in designing and manufacturing heavy-duty electric pallet trucks with a remarkable load capacity of up to 100 tons.

These versatile machines combine the practicality of an ultra-low loading platform with the functionality of a liftable platform.

Thanks to these features, Morello’s electric pallet trucks can safely handle extremely heavy loads without relying on overhead or standard cranes, significantly increasing operator safety.

Simply position the load on suitable steel pallets (custom-designed by Morello if required), and the pallet jack can be placed underneath to lift and transport it anywhere within your facility. Alternatively, loads can be positioned on supports, such as wooden blocks, allowing the pallet truck to lift and relocate them to other supports in different areas.

All of this is possible with loads of up to 100 tons!

Given the substantial payloads involved, all of Morello’s heavy-duty electric pallet trucks are equipped with power steering to reduce operator fatigue.

While we offer electric pallet trucks with a steering bar, most customers prefer control via pendant push-button panel or radio remote control, which minimizes the steering radius and provides effortless maneuverability.

Our heavy-duty electric pallet trucks are battery powered and available with lead-acid or lithium-ion batteries. Lithium batteries are often favored for their flexibility and long lifespan, as well as their ability to recharge rapidly. They can be topped up in just a few minutes during breaks or shift changes, restoring full power, while a complete recharge from empty takes approximately 2 hours.

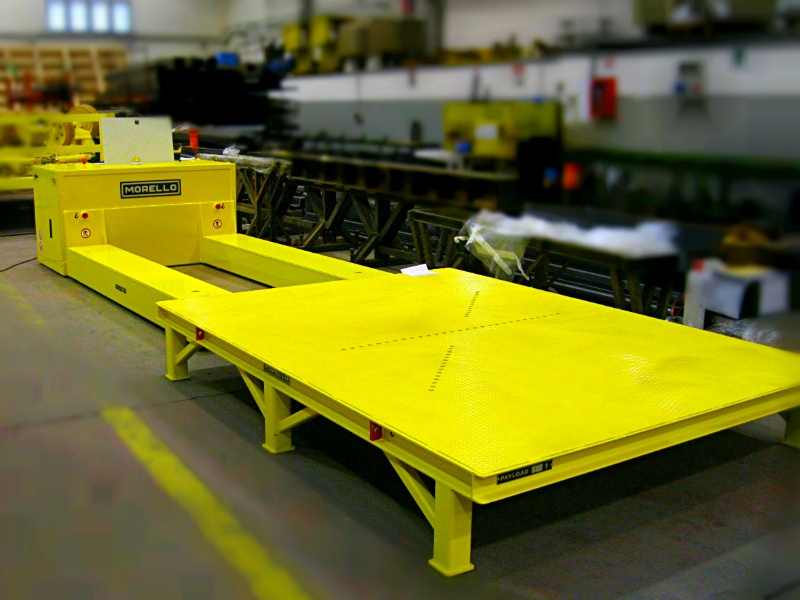

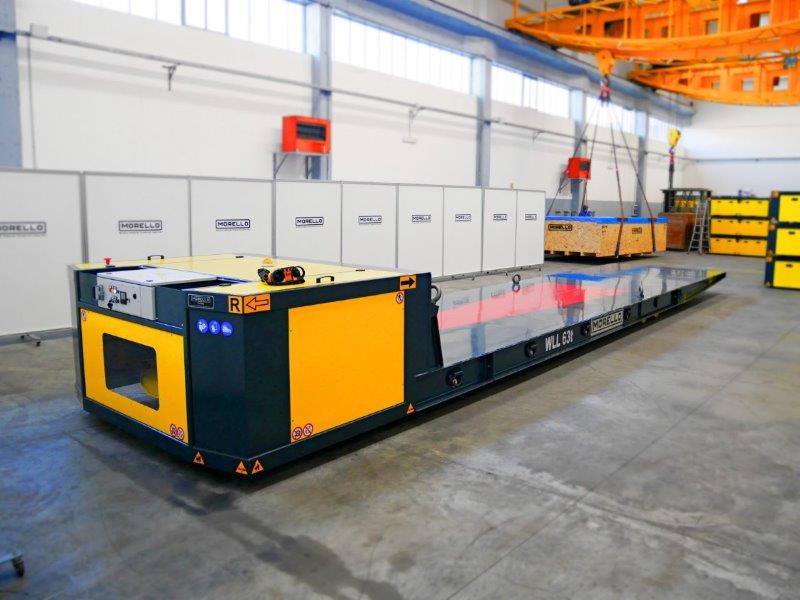

Morello offers a range of pallet jack models with standard dimensions and features, as well as fully customizable versions. Options include two forks or a single loading bed, tailored lengths and widths, variable speeds, climbing capabilities, and wheels designed for uneven flooring.

On request:

We can supply our heavy-duty electric pallet trucks as an AGV (Automated Guided Vehicle) version. Whether you require a single automated pallet truck or an entire fleet, we provide complete management systems and a variety of navigation technologies, from the most basic to the most advanced.

Automated trolleys are becoming increasingly popular across all industries and may be the ideal solution for your facility. Visit our section dedicated to AGVs for more information.

We also manufacture ATEX- and IECEx-certified heavy-duty electric pallet trucks designed for explosive or hazardous environments, such as paint booths, refineries, FPSO/FLNG vessels, and offshore platforms. Our pallet jacks for ships and oil platforms are engineered specifically for offshore applications and feature specialized coating systems and electrical components.

Technical characteristics


Capacity	from 1 ton to 100 tons
Dimensions	on request
Steering systems	± 90° steering	See the technology
Power supply	battery (electric grid or diesel generator on request)	See the technology
Travel speed	on request (from 1 km/h to over 3 km/h)
Drive motors	AC motors (hydraulic motors on request)	See the technology
Steering motors	AC motors (hydraulic motors on request)	See the technology
Command	control tiller, pendant panel, remote controller, footplate	See the technology
Kind of wheels	polyurethane (solid rubber on request)
Lifting stroke	50 ÷ 100 mm (others on request)
Kind of battery	lead acid, gel, lithium, pure lead
Battery life	on request (from 1500 m to over 15000 m)
Climbing ability	on request (from 1% to over 15%)
Operating environment	indoor, outdoor, offshore
Safety devices	laser scanners, sensitive bumpers, ultrasonic sensors	See the technology
Industry 4.0 ready	on request	See the technology
Hazardous areas conform (EX)	on request (ATEX, IECEx, NEC 500)	See the technology
Automatic version – AGV	on request	See the technology
