Morello designed and manufactured a multidirectional heavy duty mover with 20 ton payload for an important mechanical Company.
This battery powered trolley is very useful in order to avoid the overhead crane usage to move material around the plant.
It can go under the load, lift it by 200 mm, bring it wherever is necessary and lie it down. Thanks to this feature it is possible to save lot of time, move heavy duty materials in a safer way (avoiding suspended loads) and leave the overhead crane to other tasks.
This multidirectional heavy duty mover is also very practical due to its multidirectional feature. Every wheel’s unit can steer independently so this electric mover can perform any kind of steering: 90° steering (side move), diagonal steering, carousel (steering in its center), compass (turn around a point) and standard Ackermann steering.
Combining self-loading feature to multidirectional one it means to have as much flexibility as possible, since it is possible to use all available space in every moment it is needed, without any compromise.
This multidirectional heavy duty mover is battery powered and it can be equipped with lithium battery, in order to have the best available performances, reducing the charging time to approx. 2 hours (compared to 8 hours of standard batteries).
This particular version is also equipped with AGV feature. Thanks to an optical sensor that can see coloured stripes on ground it can follow the stripes and go ahead in a completely automatic way.
Thanks to all these features this heavy duty multidirectional AGV is much appreciated by customers.
Morello Company produces these battery multidirectional heavy duty mover for USA, Europe, South and Central America, Asia and Australia.
Every electric cart can be customized on customer request in every detail. Here you can find some examples: Battery powered trolleys on wheels

OMNI-E
20 tonnes – 3.500 x 2.200 mm

Main features:
Capacity: 20 ton (up to over 500 tons on request)
Steering: omnidirectional
Power supply: lead-acid battery (gel, lithium and others on request)
Drive motors: AC motors
Steering motors: AC motors
Dimensions: 3.500 x 2.200 mm (other dimensions on request)
Travel speed: 20 m/min
Battery life: 5 km
Command: radio remote controller
AGV: on request
On request: ATEX / IEC Ex conform

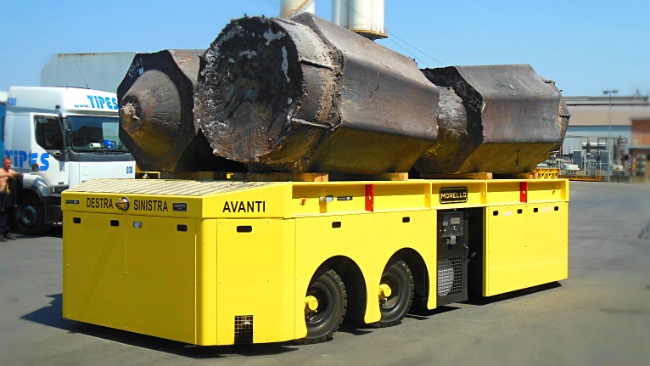

Morello designed and manufactured an heavy duty transporter to move steel material around a still mill yard.
It can transports up to 130 tons of load thanks to its 16 superelastic wheels and its high installed power.
This diesel powered self-propelled trailer is equipped with a 150 kW diesel generating set.
Due to diesel generator the heavy duty transporter can be driven by electric motors instead of hydraulic ones. Avoiding a complex hydraulic system for driving it means a very low maintenance (an hydraulic machine always need a lot of maintenance) and a better control of traction and steering!
A better control of motors also means a lower fuel consumption and a lower ecological impact.
This heavy duty transporter has n°8 wheel steering but, in order to reduce turning radius, it is also possible to supply it with all n° 16 wheels steering.
Every couple of wheels is mounted on an oscillating axle and each axle is mounted on a rocker arm; this mechanical configuration allow the diesel powered mover to travel even on uneven floors without overloading a wheel or an axle.
The heavy duty transporter can be controlled by a pendant panel or by a radio remote controller. Both of them allow a potentiometric control of the acceleration that means an acceleration/deceleration ramp extremely gradual, millimetric movements and smoothly speed changes.
Morello Company produces these diesel heavy duty transporter for USA, Europe, South and Central America, Asia and Australia.
Every diesel cart can be customized on customer request in every detail. Here you can find some examples: Diesel powered self-propelled trailer

SGG VSP3
130 tonnes – 6.000 x 3.000 mm

Main features:
Capacity: 130 ton (up to over 500 tons on request)
Steering: front axle steering
Power supply: diesel generating set
Drive motors: AC motors
Steering motor: AC motors
Dimensions: 6.000 x 3.000 mm (other dimensions on request)
Travel speed: 60 m/min
Command: pendant panel / radio remote controller
AGV: on request
On request: ATEX / IEC Ex conform
