Morello designs and manufactures electric SPMTs, or self-propelled modular transporters, specifically for handling heavy loads in various manufacturing industries. These electric SPMTs can transport loads ranging from 1 ton to over 1000 tons.

Each transporter is multidirectional, meaning it can move in any direction, including standard steering, turning on its own axis, and diagonal or compass movements. This versatility allows the electric self-propelled modular transporters to operate in tight spaces and enables multiple units to work together synchronously for transporting extremely heavy and large loads.

One of the key features of these multidirectional electric trolleys is their modularity. Customers can purchase several units and use them individually or connect them via cable or wireless to operate as a single system.

Driven by electric motors and powered by batteries, these transporters produce no emissions, making them suitable for indoor use as well.

Another valuable feature of these battery-operated SPMTs is their lifting deck. Each transporter is equipped with hydraulic suspensions that serve two primary purposes:

1. To lift the loading deck for picking and placing loads or pallets without the need for cranes;
2. To adapt to uneven floors, ensuring even load distribution.

Morello’s self-propelled modular transporters are highly regarded by customers for being both electric and battery-powered, as well as fully customizable. Every detail can be tailored to meet customer’s specifications, including speed, capacity, dimensions, wheel type, battery type, duration, and superstructures.

Morello produces these electric SPMTs (self-propelled modular transporters) for customers in the USA, Europe, South and Central America, Asia, and Oceania.

Main features:

• Capacity: from 1 ton to over 1000 tons
• Steering: multidirectional (90°, diagonal/crab, carousel/360°,…)
• Power supply: battery (electric grid or diesel generator available on request)
• Drive motors: AC brushless motors
• Steering motors: AC brushless motors
• Wheel type: rubber or polyurethane
• Dimensions



• Lifting stroke: from 100 mm
• Battery life: on request (from 1.500 m to over 15.000 m)
• Control: radio remote controller
• Climbing ability: on request (from 2 % to over 20 %)
• Safety devices: laser scanner, sensitive bumpers, sensitive edges, ultrasonic sensors
• ATEX / IECEx / Hazloc compliance: available on request (Zone 1 and 2, dust and gas)
• AGV: available on request

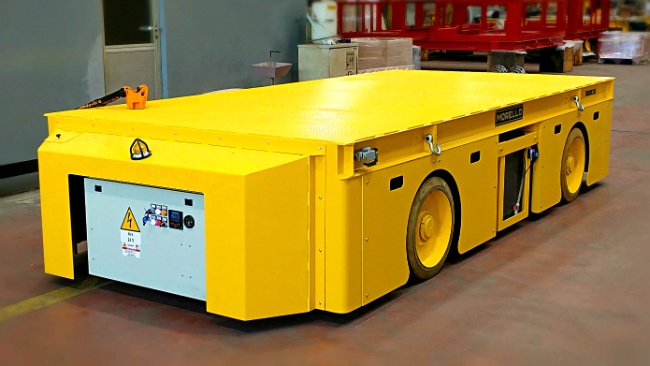

Morello designed and manufactured an electric platform truck to heavy duty material handling inside dies industries.
This electric platform truck is used to freely transport heavy molds and other kind of loads around the factory without any constraint, as rails or power supply cables.
Despite its high capacity this battery powered trolley has a very high maneuverability thanks to its axles, both steering. Every axle can steer by 35°, keeping the steering radius very small and allowing to this battery platform truck to operate in very narrow places.
This battery powered trolley is equipped with solid rubber wheels, in order to travel without any problem, as on concrete floor as on asphalt floor. The rubber wheels are non-marking type and do not leave any mark on resin and painted floors.
It can be controlled by a wired pendant panel and by a potentiometric remote controller. It is very easy to maneuver and not do need any specific expertise to be used.
This truck is powered by a standard lead-acid battery that guarantee an autonomy without any charge of 6000 meters approx. It can be supplied with a higher battery autonomy, depending on customer needs.
Morello designs electric platform trucks completely based on customer needs. Every detail can be customized: capacity (up to over 500 tons), speed, dimensions, superstructures, wheels and many other features can be modified.
Morello sells this kind of electric platform trucks all over the world: USA, Europe, South and Central America and Asia.

SGAI – VC
30 tonnes – 4.000 x 2.000 mm

Main features:
Capacity: 30 ton (up to over 500 tons on request)
Steering: both axles steering
Power supply: lead-acid battery (gel, lithium and others on request)
Drive motors: AC motors
Steering motors: AC motors
Dimensions: 4.000 x 2.000 mm
Travel speed: 20 m/min with full load
Battery life: 4 hours continuous operation
Command: wired pendant panel / radio remote controller
On request: ATEX / IEC Ex conform

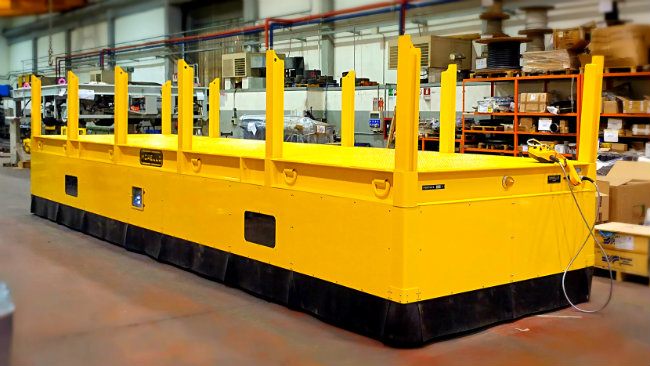

Morello designed and manufactured an electric platform cart to transport heavy loads inside manufacturing industries.
This electric platform cart can transport up to 60 tons distributed on its loading deck.
It has both axle steering, in order to operate also in narrow spaces, despite its dimensions.
This battery trolley is designed to operate in harsh conditions. It can travel on uneven floors thanks to superelastic tyres and an oscillating axle, allowing a good load compensation on wheels. This battery platform cart is very well protected by dust and water by a complete fairing all around and electrical components rated IP 65 or higher.
Furthermore it is equipped with very powerful motors that allow to climb up to 10% slope with all 60 tons on it.
The speed of this battery trolley reach 50 m/min and it can be improved on request.
It is designed to operate for 1 or 2 shifts a day since it is equipped with an 80 volts battery with an autonomy of 14 km approx. If the trolley needs to be used more than 14 km a day it is possible to be supplied with bigger batteries.
To the load containment there are n° 6 beams on each long side; they can be easily removed to transport various kind of loads, even bigger than loading deck dimension.
Morello Company produces these kind of heavy duty platform cart for USA, Europe, South and Central America, Asia and Oceania.
Every electric cart can be customized on customer request in every detail. Here you can find some examples: Battery powered trolleys on wheels

SGAI – VC
60 tonnes – 9.000 x 2.500 mm

Main features:
Capacity: 60 ton (up to over 500 tons on request)
Steering: both axles steering
Power supply: lead-acid battery (gel, lithium and others on request)
Drive motors: AC motors
Steering motors: AC motors
Dimensions: 9.000 x 2.500 mm
Travel speed: 50 m/min
Battery life: 14 km
Command: wired pendant panel / radio remote controller
AGV: on request
On request: ATEX / IEC Ex conform
